Introduce

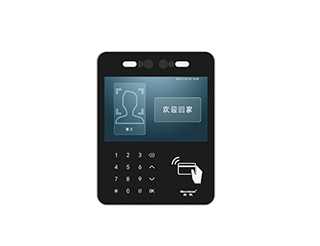

The product is an 8-inch all-digital face identification entrance machine, with solid keys and a tempered glass panel protection design. With the help of a 200W ultra-clear binocular network camera and deep learning algorithm, the product can realize face identification function, and residents in the community can open the door through face comparison, effectively improving the user experience.

The product design conforms to the national: GA/T 1755-2020 General Technical Requirements for Security Precaution ?Face Identification Application ID Verification Equipment.

Features

Face identification access control terminal

Information release function, which can display the picture information released by the property;

Full color at night, supporting the display of full-color images in low-light scenes;

Monitoring function, using 200W high-definition surveillance camera, with 120-degree ultra-wide-angle lens, which can be used as a security monitoring point-7 * 24 all-weather preview and video recording;

The function of continuous transmission in case of network disconnection, which can support the local storage of 1W authentication events (including capture images);

Intercom function, supporting two-way intercom with indoor unit or central management unit;

Support the functions of face identification with mask and detection without a mask (voice and text reminder);

Dust-proof and waterproof (IP65) design, suitable for the outdoor harsh environments;

Parameters

Equipment appearance	8-inch HD ips display, 2-megapixel binocular camera, wide dynamic, face identification distance 0.2-3m?
Installation scenarios	Doorway wall mounting
Equipment capacit	Support 6000/10000 face whitelists, 1: N face comparison time < 0.2S/person, support 100000 cards, 150000 records, SD card slot * 1 (maximum 512GB)
Authentication metho	Support face, swipe card (card type 13. 56MHz Mifare card), password and its combination of authentication
Communication interface	Internet access/4G (optional)/wifi (optional)/Bluetooth (optional)
Interface	LAN1, RS2321, RS4851 (optional), wiegand in/out 1 (optional), USB2 (optional). Relay output 1, Door open button * 1 (optional)
Operating voltage	DC12V/1A (9w without power supply, additional power supply required)
Audio input	Built-in omnidirectional microphone with noise suppression and echo cancellation
Operating mode	Support the three themes of normal mode, advertising mode and concise mod
Proximity sensing	Support human body induction, ≤ 1.5m
Operating?environment	Indoor/outdoor environment, protection grade IP65?
Installation method	Wall mounting hanging plates can be equippe
Product size	23019628mm
Operating temperature	-30~60℃
Main functions	Face identification, attribute detection, living body detection, backlighting adaptation, mask identification, offline use, background management, photo support, video anti-counterfeiting, etc

Applied to scenarios such as smart communities, smart parks, urban villages and rental houses.
